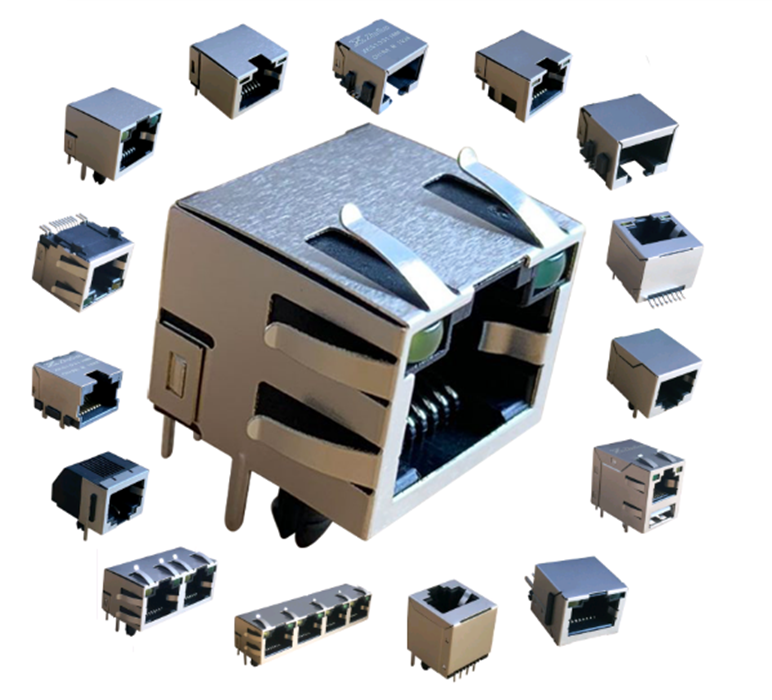

Full range of RJ45 connectors

RJ45 consists of a plug and socket. These two components make up a connector that is connected to a wire to provide electrical continuously.

The core of an RJ45 module is a modular jack. Gold-plated leads or socket holes maintain stable and reliable electrical connections to modular socket shrapnel. The electrical contact is further strengthened with the insertion of the plug due to friction between the shrapnel and the plug. The jack body is designed with an integral locking mechanism so that when the modular plug is inserted, maximum pull strength is generated outside the interface of the plug and jack. The wiring module on the RJ45 module connects the twisted-pair cable through the U-shaped wiring slot. The locking spring can fix the RJ45 module on the information egress device such as the panel.

Mass supply single port RJ45 connector,Low-profile RJ45 connector,SMT RJ45 connector,Vertical RJ45 connector,RJ45 Connector with USB,1xN RJ45 connector,2xN RJ45 connector,RJ45 without Magnetics.
