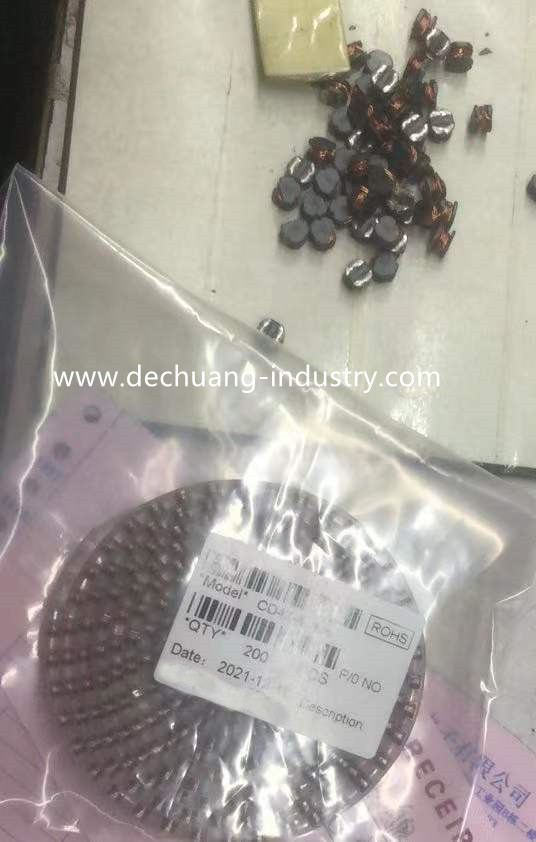

SMD inductor CD4532-2R2M

The application fields of CD series chip power inductors are as extensive as other electronic components, but they are mainly used in power supplies, LED lights, instrumentation, health equipment, stage lighting, household appliances, broadband networks, security, fitness equipment, computer peripherals , Outdoor lighting, communications, digital, automotive electronics, large equipment and other electronic products.

Let's first briefly understand its own performance and scope of use. SMD CD inductance characteristic performance, it has a flat bottom, easy surface mounting, strong solderability, and firm soldering. High quality, high Q value, high current resistance. Unshielded ferrite core structure, low cost. The product is lead-free and complies with EU ROHS standards.

The naming definition of CD series SMD power inductors, for example: LRCD75F151KT05

　 1. The series model name of the product is: LRCD type, L refers to inductance, R winding;

　 2. The indication of product size: 75, which is the diameter X height, for example, 7 means the diameter is 7mm, 5 means the height is 5mm, and the allowable tolerance is ±0.3mm;

　 3. F space bar;

　 4. Inductance: "151" means 150uH, and so on;

　 5. Inductance value tolerance: J=±5%, K=±10%, L=±15%, M=±20%, N=±30%, can be customized according to requirements;

　 6. Current: T03=300MA, T05=500MA, T10=1A, T20=2A, T30=3A.
