5G BASE-T

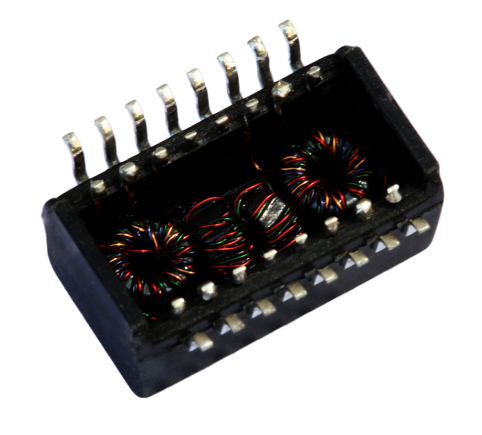

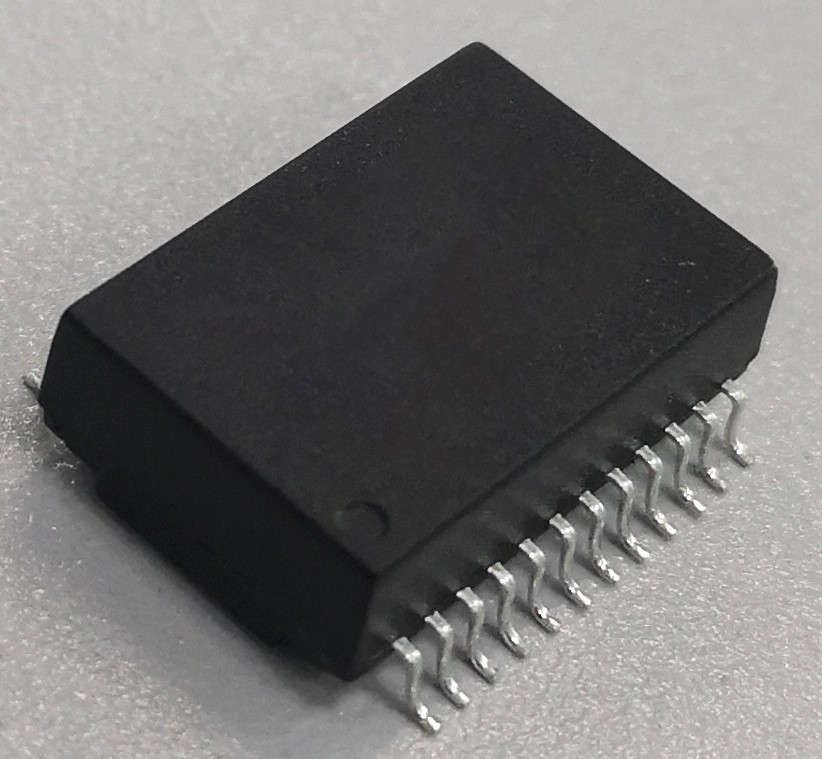

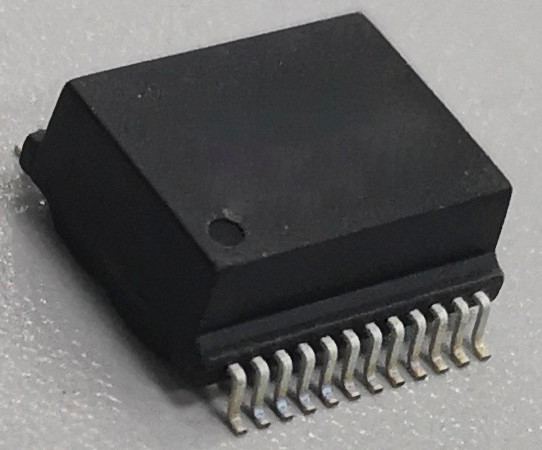

5G BASE-T 720mA Single Port Ethernet Transformer Modules

Electrical
1. Current Rating	1.5 am ps
2. Voltage Rating	125 vac
3. Insulation Resistance	500 MΩmin
4. Contact Resistance	30 MΩmax
5. Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force	2 CONTACTS.....350g 4 CONTACTS.....500g 6 CONTACTS.....750g 8 CONTACTS.....900g 10 CONTACTS.....1050g
2. Retention Strength	7.7KG.F min between jack and plug
3. Durability	750 mating cycles min
Material
1. Housing	ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact Wire	Diameter 0.45mm phosph or bronze gold plating over nickel 0.35mm thckness phospho
3. Shield	0.20~0.25mm thickness brass with tin plated
4. Gold Plating	1u inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
5. RoHS peak wave solder	RoHS peak wave solder temperature rating 240℃±5℃
Environmental
Working Temperature	-40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE, WORKK
STATION: PC/SYSTEM, PRINTER, SERVER, NB, IACABLE MODEN, XDSL APPLICATION, SET-TOP-BOX.
